Názov produktu

K30 418 710 PN10

Technický popis
Prevedenie upchávkové s vekom a s kuželovým uzáverom. Prietok kuželom je označený ryhou na prednej ploche stopky kužela. Stopka kužela je upravená na ovládanie ručným kohútovým kľúčom na štvorhran. Pripojenie prírubové.
Materiál
Základné prevedenie teleso/kužel je sivá liatina/sivá liatina. Varianty sú sivá liatina/mosadz alebo, bronz/bronz.
Montáž
Do vodorovného aj zvislého potrubia. Smer prúdenia je ľubovoľný.
Použitie
Pre vodu a vodnú paru, na zvláštnu požiadavku aj pre iné neagresívne prevádzkové látky. Môžu sa použiť pre látky nebezpečné a ľudskému zdraviu škodlivé, pri nich úniku do pracovného prostredia, v prípade netesnosti kužela v telese opotrebením je znemožnené utesnenie kužela upchávkou.

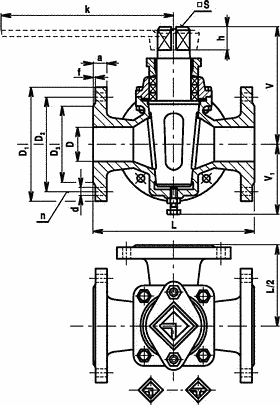

Tabuľka rozmerov:

DN	D	L	V	V1	D1	D2	D3	a	f	d	n	S	h	k	kg
							PN	16
20	20	150	101	66,5	105	75	58	16	2	14	4	19	15	146	4,2
25	25	160	101	66,5	115	85	68	16	2	14	4	19	15	146	5,9
32	32	180	113	75,0	140	100	78	16	2	18	4	24	17	170	8,5
40	40	200	139	88,0	150	110	88	18	3	18	4	24	17	170	12,0
50	50	230	157	100,0	165	125	102	20	3	18	4	36	21	216	19,6
							PN	10
65	70	290	193	131,0	185	145	122	20	3	18	4	46	26	260	24,7
80	80	310	208	142,0	200	160	133	22	3	18	8	46	26	260	28,5
100	100	350	249	180,0	220	180	158	24	3	18	8	60	34	325	42,9

Tabuľka použitia:

Teplota[°C]	Tlak	[MPa]
	PN10	PN16
120	1,0	1,6

Pre vodu a vodnú paru, na zvláštnu požiadavku aj pre iné neagresívne prevádzkové látky. Môžu sa použiť pre látky nebezpečné a ľudskému zdraviu škodlivé, pri nich úniku do pracovného prostredia, v prípade netesnosti kužela v telese opotrebením je znemožnené utesnenie kužela upchávkou.

K20 138 610 PN10 Kohút kuželový priamy
