Názov produktu

K85 171 616 PN16

Technický popis
Guľový kohút je obojsmerná armatúra, ktorej uzáver tvorí guľa. Uzáver sa zatvára (otvára) otočením páky doprava ( doľava) o 90°. Polohy uzáveru ZATVORENÉ – OTVORENÉ sú vymedzené dorazom. Pripojenie medziprírubové.
Materiál
Teleso je zo sivej liatiny, guľa a vreteno sú z korózievzdornej ocele. Sedlá a upchávka sú z teflónu.
Montáž
Do vodorovného aj zvislého potrubia. Smer prúdenia je ľubovoľný.
Použitie
Pre neagresívne prevádzkové látky voda, vzduch a plyny. Dovolená veľkosť mechanických nečistôt je do 30µm, množstvo nečistôt je do 20 g.m-3 . Kohúty sa nedoporučujú používať na prevádzkové látky, ktoré sa priliepajú na povrch gule.

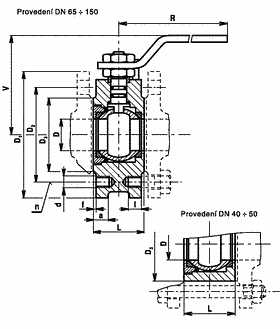

Tabuľka rozmerov:

DN	D	L	V	D1	D2	D3	a	f	d	l	n	R	kg
40	38	60	110	-	-	88	-	-	-	-	-	270	3
50	48	70	121	-	-	102	-	-	-	-	-	270	4
65	64	95	130	185	145	122	20	3	M16	25	4	360	11
80	76	118	149	200	160	138	22	3	M16	25	8	360	14
100	95	140	166	220	180	158	24	3	M16	25	8	430	22
125	118	175	190	250	210	183	26	3	M16	25	8	430	35
150	150	210	243	285	240	212	26	3	M20	30	8	660	56

Tabuľka použitia:

Pre neagresívne prevádzkové látky voda, vzduch a plyny. Dovolená veľkosť mechanických nečistôt je do 30µm, množstvo nečistôt je do 20 g.m-3 . Kohúty sa nedoporučujú používať na prevádzkové látky, ktoré sa priliepajú na povrch gule.
