Názov produktu

V30 111 540 PN 40

Technický popis
Ventil je strmeňový. V telese je navarené sedlo, na ktoré dosadá uzatváracia kuželka. Kuželka je otočne spojená s vretenom. Vreteno je v strmeni utesnené upchávkou. Smer prúdenia pracovnej látky je pre DN15 ÷ 100 pod kuželku. Pre DN125 ÷ 200 je smer prúdenia nad kuželku s vnútorným obtokom, ktorý slúži k vytvoreniu potrebného tlakového spádu.
Materiál
Teleso a strmeň sú z uhlíkovej ocele, upchávkové veko z temperovanej liatiny. Kuželka je z korózievzdornej ocele, alebo z uhlíkovej ocele s navarením tesniacej plochy nerezovou elektródou.
Montáž
Do vodorovného aj zvislého potrubia. Smer prúdenia je určený šípkou na telese.
Použitie
Prevádzkovým médiom je voda, vodná para, neagresívne kvapaliny a vzduch. Ventil slúži ako uzatvárací, alebo vypúšťací orgán, ako regulačný orgán je nevhodný.

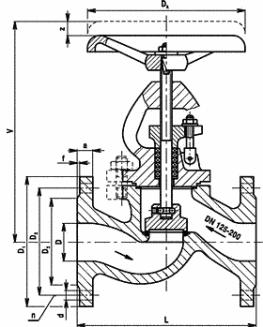

Tabuľka rozmerov:

DN	D	L	V	z	D1	D2	D3	a	f	d	n	Dk	Kg
15	15	130	170	13	95	65	47	16	2	14	4	125	2,7
25	25	160	200	13	115	85	68	18	2	14	4	125	4,0
40	40	200	275	13	145	110	88	18	3	18	4	200	7,3
50	50	230	275	17	160	125	102	20	3	18	4	200	9,1
65	65	290	345	25	180	145	122	22	3	18	8	250	16,1
80	80	310	355	25	195	160	133	24	3	18	8	250	20,1
100	100	350	415	35	230	190	162	24	3	22	8	315	32,8
125	125	400	490	47	270	220	184	26	3	26	8	315	46,6
150	150	480	545	55	300	250	218	28	3	26	8	315	71,0
200	200	600	680	62	375	320	280	34	3	30	12	400	143,0

Tabuľka použitia:

Teplota[°C]	Tlak[MPa]
200	4,0
300	3,2
400	2,5

Prevádzkovým médiom je voda, vodná para, neagresívne kvapaliny a vzduch. Ventil slúži ako uzatvárací, alebo vypúšťací orgán, ako regulačný orgán je nevhodný.
