Názov produktu

V30 111 3100 PN100

Technický popis
Prevedenie strmeňové s ručným ovládaním. Pripojenie prírubové, alebo privarovacie.
Materiál
Teleso a strmeň sú z ulíkovej ocele, alebo zliatinovej ocele. Vreteno je z korózievzdornej ocele. Kuželka je z korózievzdornej ocele (kalená), alebo zliatinovej ocele s návarkom.
Montáž
Do vodorovného aj zvislého potrubia. Smer prúdenia je určený šípkou na telese.
Použitie
Prevádzkovým médiom je voda a vodná para. Na zvláštnú požiadavku aj pre iné neagresívne látky.

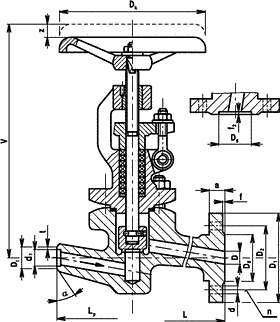

Tabuľka rozmerov:

DN	D	L	V	z	D1	D2	D5	D6	a	f	f2	d	n	Dk	kg	Lp	D1 (2)	d2	t	ά	kg (2)
15	15	210	255	20	105	75	40	47	20	2	3	14	4	125	7,5	120	22,0	16,8	2,5	45	5,2
25	25	230	310	30	140	100	58	68	24	2	3	18	4	160	12,4	130	28,0	26,0	1,0	35	8,1
40	40	260	390	50	170	125	76	88	26	3	3	23	4	200	24,5	150	39,3	37,3	1,0	35	16,1

Tabuľka použitia:

Teplota[°C]	Tlak [MPa]/11416	Tlak [MPa]/ 15128
-20	10,0	-
200	10,0	10,0
300	8,0	8,9
400	6,0	8,0
550	-	6,3

Prevádzkovým médiom je voda a vodná para. Na zvláštnú požiadavku aj pre iné neagresívne látky.
