Názov produktu

B10 111 540 PN 40

Technický popis
Prevedenie strmeňové s dvomi ručnými kolieskami. Pripojenie prírubové.
Materiál
Teleso a strmeň sú z uhlíkovej ocele, vreteno a kuželka sú z korózievzdornej ocele. Kuželka (PN100 a 250 ) je s návarom STELLIT. Sedlo v telese je z korózievzdornej ocele, alebo je navarené nerezovou elektródou.
Montáž
Do vodorovného aj zvislého potrubia. Smer prúdenia je určený šípkou na telese.
Použitie
Pre vypúšťanie bahna a kotlových kalov z parných kotlov. Odkalovací ventil nie je možné používať ako armatúru uzatváraciu. Pre bezpečný uzáver sa zaraďuje pred, alebo za ventil uzatváracia armarúra.

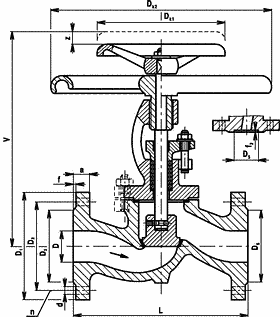

Tabuľka rozmerov:

DN	D	L	V	z	D1	D2	D3	a	f	d	n	Dk1	Dk2	kg
25	25	160	210	15	115	85	68	18	2	14	4	100	160	5,2
40	40	200	280	25	145	110	88	18	3	18	4	160	250	11,0
50	50	230	280	25	160	125	102	20	3	18	4	160	250	15,0
65	65	290	280	25	180	145	122	22	3	18	8	160	250	20,0

DN	D	L	V	z	D1	D2	D5	D6	a	f	f2	d	n	Dk1	Dk2	kg
25	25,0	230	325	25	135	100	58	-	24	3	3	18	4	160	250	14,5
40	40,0	260	390	30	165	125	76	-	26	3	3	23	4	160	300	27,5

DN	D	L	V	z	D1	D2	D5	D6	a	f	f2	d	n	Dk1	Dk2	kg
50	50,0	300	400	30	195	145	88	-	28	3	3	27	4	160	300	39,0

DN	D	L	V	z	D1	D2	D5	D6	a	f	f2	d	n	Dk1	Dk2	kg
25	22,0	260	320	15	145	105	-	70	34	2	-	23	4	125	200	16,6
40	31,5	300	390	18	185	135	-	90	40	3	-	27	4	200	250	30,5

Prvá tabuľka : B10 111 540
Druhá tabuľka : B10 111 4100
Tretia tabuľka: B10 111 5100
Štvrtá tabuľka: B10 111 4250

Tabuľka použitia:

Teplota[°C]	PN40	PN100	PN250
200	4,0	10,0	25,0
300	3,2	8,0	20,0

Pre vypúšťanie bahna a kotlových kalov z parných kotlov. Odkalovací ventil nie je možné používať ako armatúru uzatváraciu. Pre bezpečný uzáver sa zaraďuje pred, alebo za ventil uzatváracia armarúra.
