Názov produktu

S58 111 610 PN10

Technický popis
Prevedenie strmeňové s jednostranným tesniacim klinom s ručným ovládaním. Tesniaca strana klinu je pogumovaná. Sedlo je do telesa zašróbované. Pripojenie prírubové. Teleso posúvača má znížený výtok.
Materiál
Teleso, klin a strmeňové veko sú zo sivej liatiny, vreteno je z korózievzdornej ocele. Tesniaca plocha sedla telesa je z uhlíkovej ocele s návarom tesniacej plochy nerezovou elektródou. Tesniaca plocha klinu je pryžová.
Montáž
Do vodorovného potrubia s ručným kolesom hore. Smer prúdenia je určený šípkou na telese.
Použitie
Na dopravu hydrozmesí ( voda, škvára, popol) maximálna veľkosť zrna 20mm. Posúvač nie je vhodný na reguláciu.

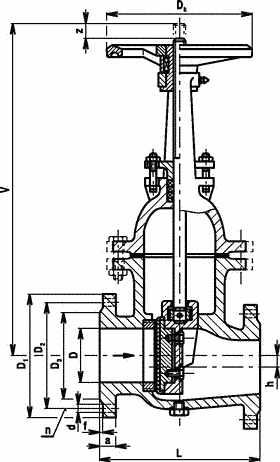

Tabuľka rozmerov:

DN	D	L	V	z	D1	D2	D3	a	f	d	n	DK	h	kg
200	200	330	1015	225	340	395	368	26	3	22	8	320	30	150
250	250	450	1275	270	395	350	320	26	3	22	12	500	40	212
300	300	500	1405	320	445	400	370	28	4	22	12	500	50	260

Tabuľka použitia:

Teplota[°C]	Tlak[MPa]
65	1,0

Na dopravu hydrozmesí ( voda, škvára, popol) maximálna veľkosť zrna 20mm. Posúvač nie je vhodný na reguláciu.
